24000rpm speed 70m³/h air flow BLDC blower Direct current is widely used in vacuum cleaner application for its efficient and reliable performance. With its advanced motor technology and low noise, it provides a strong suction power for removing dust and dirt from floors and surfaces. The brushless technology also ensures a longer service life and lower maintenance costs, making it a popular choice among consumers. Additionally, the compact and lightweight design makes it easy to handle and maneuver during cleaning. With the continuous improvement of technology, the direct current brushless blower is sure to continue its role as an essential component in vacuum cleaners and contribute to a cleaner and healthier environment.
Blower features:
| Brand name | Wonsmart |
| High pressure with dc brushless motor |
| Blower type | Centrifugal fan |
| Voltage | 24vdc |
| Bearing | NMB ball bearing |
| Applicable Industries | Manufacturing Plant |
| Electric Current Type | DC |
| Blade Material | plastic |
| Mounting | Ceiling Fan |
| Place of Origin | Zhejiang, China |
| Noise Level | 91dba |
| Certification | CE, RoHS,REACH,ETL |
| Warranty | 1 Year |
| After-sales Service Provided | Online support |
| Life time(MTTF) | >20,000hours (under 25 degree C) |
| Weight | 365g |
| Housing material | PC |
| Unit size | D42mm*H35mm |
| Motor type | Three Phase DC Brushless Motor |
| Controller | external |
| Static pressure | 7kPa |
Drawing:
Blower Performance

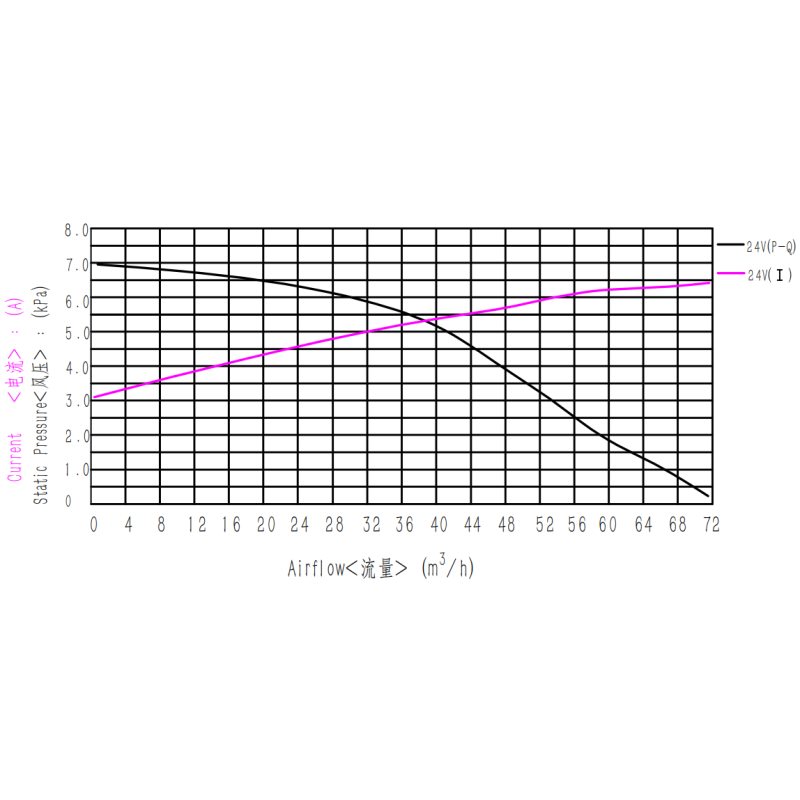

WS4235F-24-240-X200 blower can reach maximum 70m³/h airflow at 0 kpa pressure and maximum 7kpa static pressure.It has maximum output air power when this blower run at 7kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 16kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:
DC brushless blower advantage:
(1)WS4235F-24-240-X200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 30,000 hours at 20degree C environmental temperature.
(2)This mini blower needs no maintence;
(3)This mini blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
Applications:
This blower can be widely used onto vacuum machine,fuel cell.
How to use the blower correctly:
This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.
Filter onto the inlet to protect the blower from dust and water.
Keep the environmental temperature as low as possible to make the blower life time longer.
FAQ:
Q: Can we connect this centrifugal air blower directly onto power source?
A: This blower fan is with BLDC motor inside and it needs a controller board to run.
Q: What kind of power source shall we use to drive this blower fan?
A: Generally, our customers use 24vdc switching power supply or Li-on battery.
Q: Do you also sell controller board for this blower fan?
A: Yes, we can supply adapted controller board for this blower fan.
